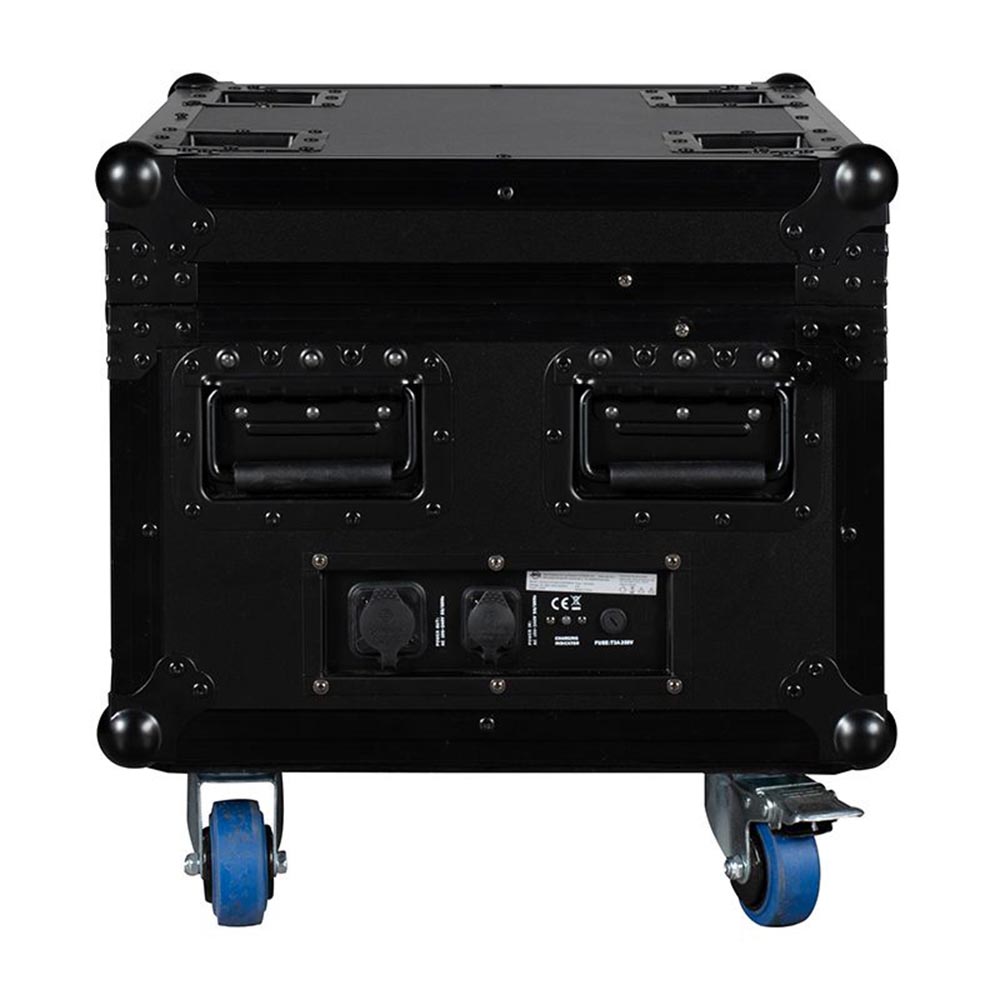

    H6 Pak Case Side View
  • product image 4
    Element Hex Fixture Bottom
  • product image 5

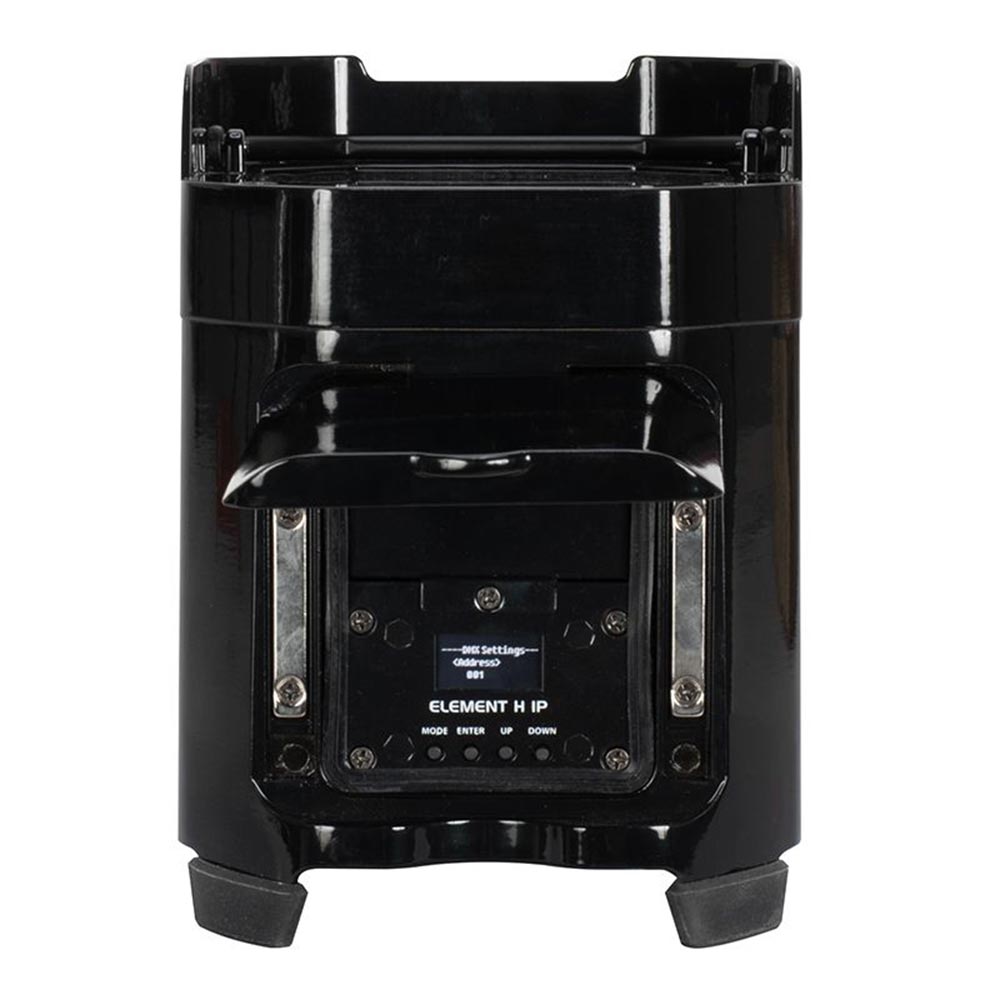

    Element Hex Fixture Controls
  • product image 6
  • product image 7
    Element Hex Side View
  • product image 8
    Element Hex Kickstand
  • product image 9
    Element H6 Pak Open
  • product image 10

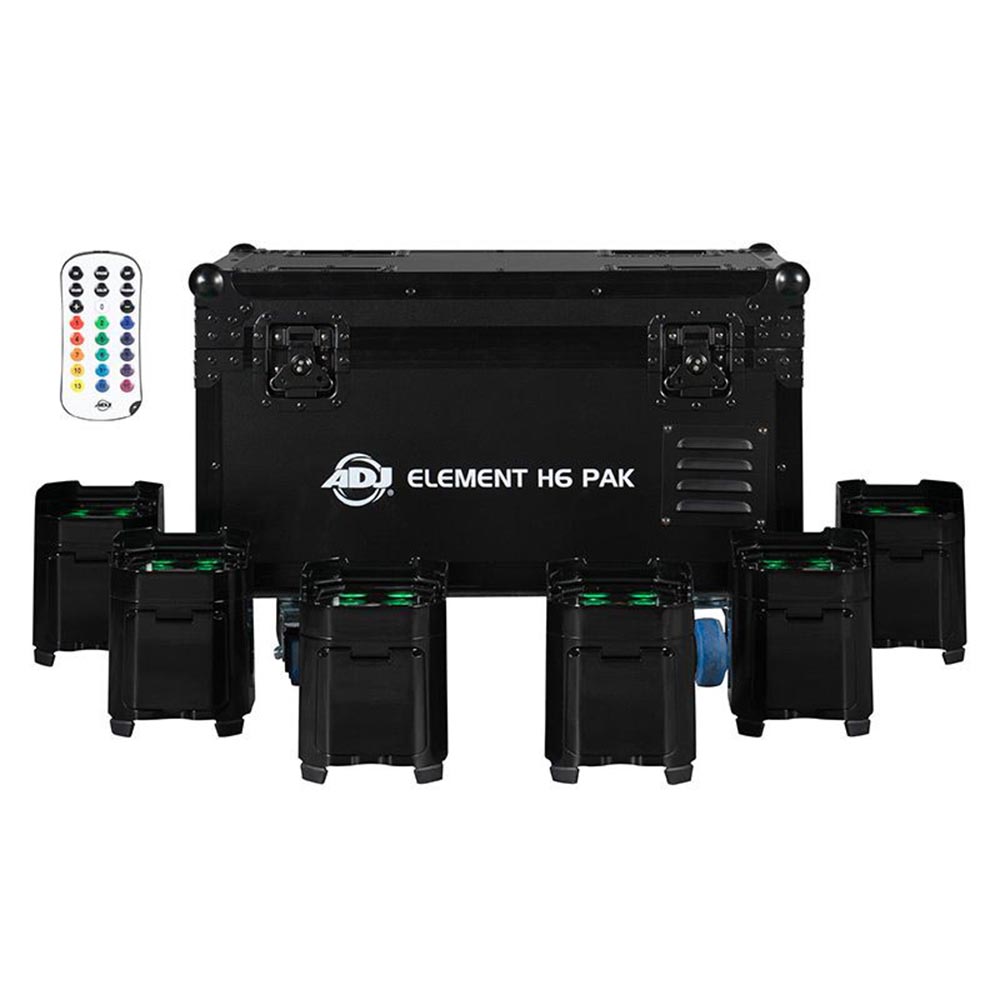

Element Hex 6 Pak Black with Charging Case and Remote

Item #: ELEMENT-H6-PAK
Your Price: $2,699.99 Each

Availability

WarehouseAvailable
RSS DISTRIBUTORS 1 Each
Note: This item is only shipped via freight truck.
ELEMENT H6 PAK CHARGING CASE W/6 H IP BLACK FIXTURES

American DJ

The ADJ Lighting Element H6 Pak is an all-in-one event up lighting system with (6) IP54-Rated battery powered black fixtures in a durable flight case with on-board battery charging solution. Includes one UCIR24 wireless remote. Suitable for indoor and temporary outdoor use. The Element H6 Pak is an exceptional lighting system that offers power, versatility, and convenience for all your event lighting needs. With its impressive features and durable design, this lighting system is perfect for event producers, and anyone looking to add some excitement and style to their event.

• Element H6 Pak houses, transports, and charges (6) Element H IP™ fixtures
• Element H6 Pak includes:
(6) Element H IP™ Black Fixtures
(1) Element H6 FC charging Flight Case
(6) Mirage Q6 IPCB Charging bases and power supplies
(1) UCIR24 Wireless Infrared Controller
(1) IP65 Locking Power Cable

H6 Pak Electrical / Thermal:
• Power Input: AC100VAC˜240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 200 Watts
• Power Draw: 3A max
• Charge status indicator
• -4°F to 113°F

H IP Fixture Specifications:
Optical:
• 4 x 20-Watt RGBAW UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 1117 @ 2M; 298 @ 4M
• Beam angle: 17.6°
• Field angle: 28.7°

Connection:
• DMX: Wireless DMX
• With Wired Digital Communication Network

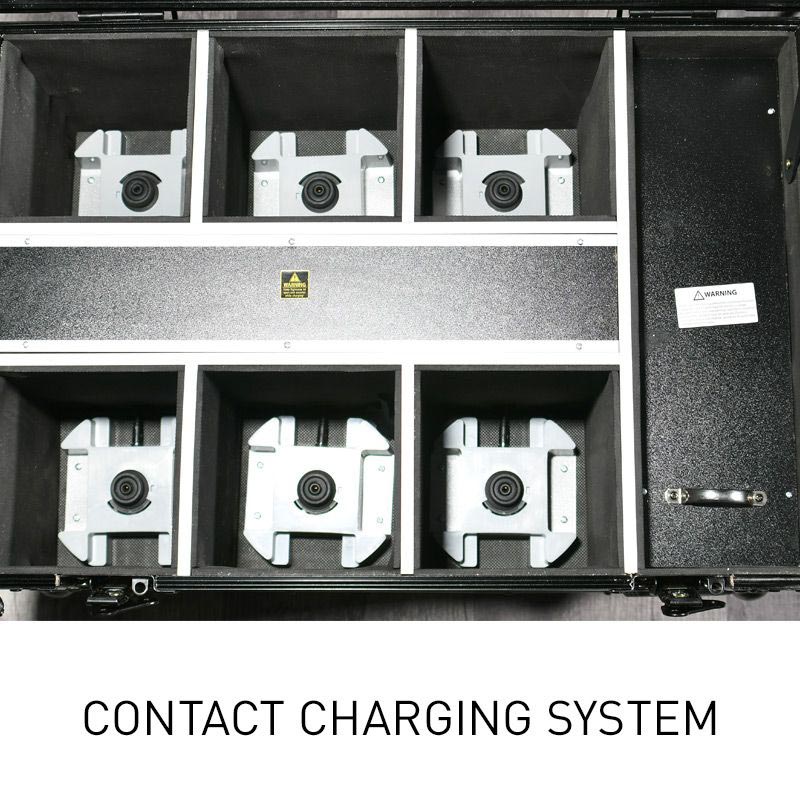

• Contact Charging system. *Charging base and power supply included

Control:
• Control protocol: Wireless DMX
• 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
• Remote control: Wireless DMX, UC-IR (Included)
• 5 Operational modes: RGBAW UV Dimmer Mode;Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control

Features:
• IP54 Rated: partial protection from dust and water splashes
• Built-in kickstand to angle fixture when sitting on the floor
• 4-touch button OLED display inside cover panel
• Built-in Aria X2 wireless DMX with signal LED indicator
• 63 built-in Color Macros
• Variable RGBAW UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• Battery charge indicator on each fixture
• Energy Save Mode

Battery:
• Battery Type: fixed polymer lithium battery
• Battery Energy: 59.2WH (Watt Hours)
• Battery Weight: 0.24 kg
• Battery Voltage: 14.8V
• Battery Capacity: 4000mAh (Typical Capacity)
• Total Lithium Ion Cells: 4 pieces
• Battery Wrap Material: PVC sleeving highland barley paper
• Battery Charge Time: 6 Hours
• Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single color)
• Easy to replace battery

Electrical:
• Power Draw Total (All LED's @ Full On): 20W
• Voltage operation: DC17V

Element H IP™ Fixture Dimensions / Weight:
• Dimensions: 5.64” long x 5.67” wide x 7.65” high
• Weight: 5.3 lbs.

Element H6 Pak Dimensions / Weight (loaded case with 6 fixtures):
• Dimensions: 18.2” long x 26.4” wide x 18.1” high
• Loaded Weight: 84.66 lbs.

Certifications:
• cETLus pending
• CE pending
• IP54 Outdoor rated

• Specifications subject to change without notice
• Sold by the Each
